Version: 10.2

Using the ServiceNow Adapter Console Application

The ServiceNow Adapter Console Application is a command-line tool that provides various commands for running background and configuration tasks to extract, process, and load data from the Open iT database to the ServiceNow instance.

Displaying the ServiceNow Adapter Console Application Tasks

To show the available tasks, follow these instructions:

Open a command prompt and run the following command to go to the installation directory of the ServiceNow Adapter, which is by default in C:\Program Files\OpeniT\ServiceNow Adapter\:
Example
```
cd "C:\Program Files\OpeniT\ServiceNow Adapter\"
```

Once in the directory, run the following command:

Example

OpeniT.Adapter.Console.exe

This will display the available options.

Output
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All rights reserved.

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 23:07:04,853 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 23:07:04,926 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Usage: OpeniT.Adapter.Console <subcommand> [args]
Type 'OpeniT.Adapter.Console help <subcommand>' for help on a specific subcommand.

Available subcommands:

DeploySchema    Deploy SQL database schema to either the latest or a specific version.
ProcessData     Process Open iT Datatypes and load to staging tables for integration.
Configure       Configure ServiceNow-required details
PushData        Fetch data from Open iT Database and push to ServiceNow instance.
TestConnection  Test connection to ServiceNow instance.
RunAdapter      Run all processing jobs

To show the available parameters for each command, add a help parameter before the command:

Example

OpeniT.Adapter.Console.exe help deployschema

This command displays the available options.

Output
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All rights reserved.

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 23:07:04,853 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 23:07:04,926 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Deploy SQL database schema to either the latest or a specific version.
usage: OpeniT.Adapter.Console DeploySchema [/version:value] [/trace]
    [/version:value]    Specific version to migrate to
    [/trace]            Enable tracing of SQL statements.

Deploying Database Schema in SQL Server (DeploySchema)

This command creates all the necessary SQL objects for data processing, including tables, stored procedures, and predefined static data for specific tables.

Instructions

Open a command prompt and run the following command to go to the installation directory of the ServiceNow Adapter, which is by default in C:\Program Files\OpeniT\ServiceNow Adapter\:
Example
```
cd "C:\Program Files\OpeniT\ServiceNow Adapter\"
```
Once in the directory, run the following command:
Example
```
OpeniT.Adapter.Console.exe DeploySchema
```
To further customize the command, use the optional parameters.
Syntax
```
OpeniT.Adapter.Console.exe DeploySchema [/version:value] [/trace]
```
Optional Parameters

/version:[migration_version]
This parameter limits the migration of the database to the specified version. The migration version format is YYYYMMDDHHMMSS.
Example
```
OpeniT.Adapter.Console.exe DeploySchema /version:20220101143000
```
/trace
This parameter triggers the command to display SQL statements.
Example
```
OpeniT.Adapter.Console.exe DeploySchema /trace
```
Combine or use optional parameters at the same time to achieve necessary capabilities.
Example
```
OpeniT.Adapter.Console.exe DeploySchema /version:20220101143000 /trace
```
The Console Application will display informational messages in the command prompt. Let the process run until it completes.

Processing Data from Open iT SQL Database (ProcessData)

This command fetches data from specific data types in the Analysis Server database and loads it to the ServiceNow staging tables.

Instructions

Open a command prompt and run the following command to go to the installation directory of the ServiceNow Adapter, which is by default in C:\Program Files\OpeniT\ServiceNow Adapter\:
Example
```
cd "C:\Program Files\OpeniT\ServiceNow Adapter\"
```
Once in the directory, run the following command:
Example
```
OpeniT.Adapter.Console.exe ProcessData
```
To further customize the command, use the optional parameter.
Syntax
```
OpeniT.Adapter.Console.exe ProcessData [/fullwipe]
```
Optional Parameter

/fullwipe
This parameter triggers the command to delete all processed and cached data.
Example
```
OpeniT.Adapter.Console.exe ProcessData /fullwipe
```
The Console Application will display informational messages in the command prompt. Let the process run until it completes.

Configuring ServiceNow Settings (Configure)

This command contains various subcommands to configure necessary ServiceNow settings for a successful API connection.

Instructions

Open a command prompt and run the following command to go to the installation directory of the ServiceNow Adapter, which is by default in C:\Program Files\OpeniT\ServiceNow Adapter\:
Example
```
cd "C:\Program Files\OpeniT\ServiceNow Adapter\"
```

Once in the directory, run the following command:

Example

OpeniT.Adapter.Console.exe Configure

The console application will display the available options.

Example
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All rights reserved.

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 19:14:52,194 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 19:14:53,243 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Current ServiceNow Configurations

ServiceNow Instance URI: https://dev165816.service-now.com/
Authentication Type: basic
Username: user1

[1]: Set ServiceNow instance URI
[2]: Set Authentication
[3]: Test Connection
[4]: Save configuration
[0]: Exit

Select:

Select from options 1 to 4, then press Enter.
The Console Application will display informational messages in the command prompt. Let the process run until it completes.

Setting the ServiceNow Instance URI

This Configure subcommand updates the value of the ServiceNow instance URI. The initial value is the one provided during installation.

Instructions

Follow the instructions in the Configure section.
Select option 1.

Provide a valid ServiceNow instance URI.

Example
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All rights reserved.

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 19:14:52,194 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 19:14:53,243 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Current ServiceNow Configurations

ServiceNow Instance URI: https://dev165816.service-now.com/
Authentication Type: basic
Username: user1

    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit

Select:1
ServiceNow instance URI [https://dev165816.service-now.com/]:

The current ServiceNow instance URI is displayed inside the square brackets. Press Enter to use the value.

note

Test the newly provided ServiceNow instance URI with the configured authentication using the Test Connection subcommand.

Select option 4 to save the changes.

The application will test the connection using the provided configuration. If the connection fails, a prompt will be displayed.

Example
    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit

Select: 4

2023-09-19 19:35:10,352 +08:00 INFO Actions - ServiceNow URI:
https://dev165816.service-now.com/
2023-09-19 19:35:10,370 +08:00 INFO Actions - Authentication
Type: basic

2023-09-19 19:35:10,385 +08:00 INFO Actions - Validating supplied/saved configurations.
2023-09-19 19:35:10,395 +08:00 INFO Actions - Testing supplied configurations...
2023-09-19 19:35:11,872 +08:00 ERROR Actions - Credentials supplied is invalid!
2023-09-19 19:35:11,890 +08:00 ERROR Actions - Connect response:
    {"error":{"message":"User Not Authenticated","detail":"Required to provide Auth information"},"status":"failure"}
2023-09-19 19:35:11,899 +08:00 ERROR Actions - Cannot connect using supplied credentials!

Would like to continue saving [y/n]? [y]:

Type y (or press Enter) to continue saving. Let the process run until it completes.

note

After configuring the new ServiceNow instance URI, follow the ServiceNow Adapter Post-Installation Configuration steps.

Setting Authentication to Basic Authentication

This Configure subcommand updates the Authentication Type to Basic Authentication and the credentials to connect to the ServiceNow instance.

Instructions

Follow the instructions in the Configure section.
Select option 2.

The available Authentication Types will be displayed. Select 1.

Example
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All
rights reserved. http://www.openit.com

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 23:07:04,853 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 23:07:04,926 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Current ServiceNow Configurations

ServiceNow Instance URI: https://dev165816.service-now.com/
Authentication Type: basic
Username: user1

    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit

Select: 2

Set ServiceNow Authentication Type
    [1]: Basic Authentication
    [2]: Bearer Authentication
    [3]: Oauth2 Authentication
    [0]: Exit

Select [1][basic]:1

The current authentication type is displayed inside the square brackets.

Press Enter to proceed with new value.

Provide the credentials.
Example
```
Basic Authentication Details
Username: user1
Password (in clear text): p@$$w0Rd
```
note
Test the newly provided authentication with the configured ServiceNow Instance URI using the Test Connection subcommand.

Select option 4 to save the changes.

The application will test the connection using the provided configuration. If the connection fails, a prompt will be displayed.

Example
    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit

Select: 4

2023-09-19 19:35:10,352 +08:00 INFO Actions - ServiceNow URI:
https://dev165816.service-now.com/
2023-09-19 19:35:10,370 +08:00 INFO Actions - Authentication
Type: basic

2023-09-19 19:35:10,385 +08:00 INFO Actions - Validating supplied/saved configurations.
2023-09-19 19:35:10,395 +08:00 INFO Actions - Testing supplied configurations...
2023-09-19 19:35:11,872 +08:00 ERROR Actions - Credentials supplied is invalid!
2023-09-19 19:35:11,890 +08:00 ERROR Actions - Connect response:
    {"error":{"message":"User Not Authenticated","detail":"Required to provide Auth information"},"status":"failure"}
2023-09-19 19:35:11,899 +08:00 ERROR Actions - Cannot connect using supplied credentials!

Would like to continue saving [y/n]? [y]:

Type y (or press Enter) to continue saving. Let the process run until it completes.

Setting Authentication to Bearer Authentication

This Configure subcommand updates the Authentication Type to Bearer Authentication and the credentials to connect to the ServiceNow instance.

Instructions

Follow the instructions in the Configure section.
Select option 2.

The available Authentication Types will be displayed. Select 2.

Example
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All
rights reserved. http://www.openit.com

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 23:07:04,853 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 23:07:04,926 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Current ServiceNow Configurations

ServiceNow Instance URI: https://dev165816.service-now.com/
Authentication Type: basic
Username: user1

   [1]: Set ServiceNow instance URI
   [2]: Set Authentication
   [3]: Test Connection
   [4]: Save configuration
   [0]: Exit

Select: 2

Set ServiceNow Authentication Type
   [1]: Basic Authentication
   [2]: Bearer Authentication
   [3]: Oauth2 Authentication
   [0]: Exit

Select [2][bearer]: 2

The current authentication type is displayed inside square brackets.

Press Enter to proceed with new value.

Provide the Bearer Token.
Example
```
Bearer Authentication Details
Bearer Token (in clear text): YmvtmaPJrVB_gLfUdGgMZkM_DPLROwKKc8TtSSBEqP4DbbZjfuN4zUDIH3ht2jjRF
```
note
Test the newly provided authentication with the configured ServiceNow Instance URI using the Test Connection subcommand.

Select option 4 to save the changes.

The application will test the connection using the provided configuration. If the connection fails, a prompt will be displayed.

Example
    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit

Select: 4

2023-09-19 19:35:10,352 +08:00 INFO Actions - ServiceNow URI: https://dev165816.service-now.com/
2023-09-19 19:35:10,370 +08:00 INFO Actions - Authentication Type: bearer
2023-09-19 19:35:10,385 +08:00 INFO Actions - Validating supplied/saved configurations.
2023-09-19 19:35:10,395 +08:00 INFO Actions - Testing supplied configurations...
2023-09-19 19:35:11,872 +08:00 ERROR Actions - Credentials supplied is invalid!
2023-09-19 19:35:11,890 +08:00 ERROR Actions - Connect response:
    {"error":{"message":"User Not Authenticated","detail":"Required to provide Auth information"},"status":"failure"}
2023-09-19 19:35:11,899 +08:00 ERROR Actions - Cannot connect using supplied credentials!

Would like to continue saving [y/n]? [y]:

Type y (or press Enter) to continue saving. Let the process run until it completes.

Setting Authentication to OAuth2 Authentication

This Configure subcommand updates the Authentication Type to OAuth2 Authentication and the credentials to connect to the ServiceNow instance.

Instructions

Follow the instructions in the Configure section.
Select option 2.

The available Authentication Types will be displayed. Select 3.

Example
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All rights reserved. http://www.openit.com

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 23:19:14,492 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 23:19:14,593 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Current ServiceNow Configurations

ServiceNow Instance URI: https://dev165816.service-now.com/
Authentication Type: basic
Username: user1

    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit

Select: 2

Set ServiceNow Authentication Type
    [1]: Basic Authentication
    [2]: Bearer Authentication
    [3]: Oauth2 Authentication
    [0]: Exit

Select [3][oauth2]: 3

The current authentication type is displayed inside the square brackets.

Press Enter to proceed with new value.

Provide the credentials.

Example
Oauth2 Authentication Details
Username: user1
Password (in clear text): p@$$w0Rd
Client Id: 9390a749d288f1109b4f0825be53a43a
Client Secret (in clear text): s3cReT

note

Test the newly provided authentication with the configured ServiceNow Instance URI using the Test Connection subcommand.

Select option 4 to save the changes.

The application will test the connection using the provided configuration. If the connection fails, a prompt will be displayed.

Example
    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit
    Select: 4

2023-09-19 19:35:10,352 +08:00 INFO Actions - ServiceNow URI: https://dev165816.service-now.com/
2023-09-19 19:35:10,370 +08:00 INFO Actions - Authentication Type: oauth2
2023-09-19 19:35:10,385 +08:00 INFO Actions - Validating supplied/saved configurations.
2023-09-19 19:35:10,395 +08:00 INFO Actions - Testing supplied configurations...
2023-09-19 19:35:11,872 +08:00 ERROR Actions - Credentials supplied is invalid!
2023-09-19 19:35:11,890 +08:00 ERROR Actions - Connect response:
    {"error":{"message":"User Not Authenticated","detail":"Required to provide Auth information"},"status":"failure"}
2023-09-19 19:35:11,899 +08:00 ERROR Actions - Cannot connect using supplied credentials!

Would like to continue saving [y/n]? [y]:

Type y (or press Enter) to continue saving. Let the process run until it completes.

Testing the Connection

This Configure subcommand triggers a test connection to the ServiceNow instance using the current session’s configuration. This is useful for verifying the settings before saving them.

Instructions

Follow the instructions in the Configure section.

Select option 3.

Example
ServiceNow Adapter for Open iT Integration, 1.0.0. Copyright 2023 Open iT, Inc. All rights reserved. http://www.openit.com

Sql Database: ServiceNow @ DESKTOP123WIN\SQL2019E

2023-09-19 23:19:14,492 +08:00 INFO Productinfo - License file is valid. "servicenow" valid until 2024-07-01 (285 days)
2023-09-19 23:19:14,593 +08:00 INFO Productinfo - ServiceNow Adapter for Open iT Integration Version: 1.0.0 (1365a986)

Current ServiceNow Configurations

ServiceNow Instance URI: https://dev165816.service-now.com/
Authentication Type: basic
Username: user1

    [1]: Set ServiceNow instance URI
    [2]: Set Authentication
    [3]: Test Connection
    [4]: Save configuration
    [0]: Exit

Select: 3

The application tests the connection using the ServiceNow instance URI and authentication details from the current session. If no values are set in the session, it uses the existing configuration.

On success, it displays Connection Successful. On failure, it shows Connection Failed along with details about the error.

Testing the Connection to the ServiceNow Instance

This command triggers a connection test to the ServiceNow instance.

note

Make sure that all ServiceNow configurations (i.e., Instance URI, Authentication Type, and Credentials) are properly configured.

Instructions

Open a command prompt and run the following command to go to the installation directory of the ServiceNow Adapter, which is by default in C:\Program Files\OpeniT\ServiceNow Adapter\:
Example
```
cd "C:\Program Files\OpeniT\ServiceNow Adapter\"
```
Once in the directory, run the following command:
Example
```
OpeniT.Adapter.Console.exe TestConnection
```
The Console Application will display informational messages in the command prompt. Let the process run until it completes.

Sending Processed Data to the ServiceNow Instance (PushData)

This command fetches data from various Open iT data types in the Open iT database and sends it to the ServiceNow instance.

note

Make sure that all ServiceNow configurations (i.e., Instance URI, Authentication Type, and Credentials) are properly configured.

Instructions

Open a command prompt and run the following command to go to the installation directory of the ServiceNow Adapter, which is by default in C:\Program Files\OpeniT\ServiceNow Adapter\:
Example
```
cd "C:\Program Files\OpeniT\ServiceNow Adapter\"
```
Once in the directory, run the following command:
Example
```
OpeniT.Adapter.Console.exe PushData
```
The Console Application will display informational messages in the command prompt. Let the process run until it completes.

Running All Adapter Processing Jobs (RunAdapter)

This command combines the data processing commands – ProcessData and PushData, enabling scheduling of background data processing and sending.

Instructions

Open a command prompt and run the following command to go to the installation directory of the ServiceNow Adapter, which is by default in C:\Program Files\OpeniT\ServiceNow Adapter\:
Example
```
cd "C:\Program Files\OpeniT\ServiceNow Adapter\"
```
Once in the directory, run the following command:
Example
```
OpeniT.Adapter.Console.exe RunAdapter
```
To further customize the command, use the optional parameter.
Syntax
```
OpeniT.Adapter.Console.exe RunAdapter [/fullwipe]
```
Optional Parameter

/fullwipe
This parameter triggers the command to wipe all processed and cached data before loading and processing data.
Example
```
OpeniT.Adapter.Console.exe RunAdapter /fullwipe
```
The Console Application will display informational messages in the command prompt. Let the process run until it completes.

ServiceNow Adapter Console Configuration

Use these procedures to configure how the ServiceNow Adapter extracts, processes, and retains data.

Configuring the Data Extraction Range (Month Offset)

The ServiceNow Adapter extracts and processes 3 months of data by default, covering the current month and the previous two (2) months.

For example, if the current month is October, it will extract data from August to October.

To set the number of month offset, follow these instructions:

Log in to the Open iT Analysis Server web interface.
Go to Administration > Configuration.
Locate the configuration key Root.ServiceNow.MonthOffset.
Click the value to make it editable.
Set the value to the desired number of months to include in extraction and processing.
Click Save to apply the changes.

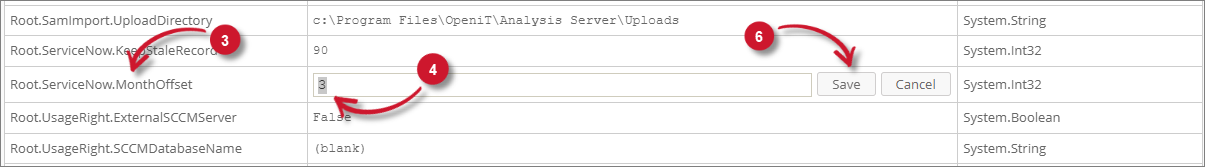

Setting Months Offset

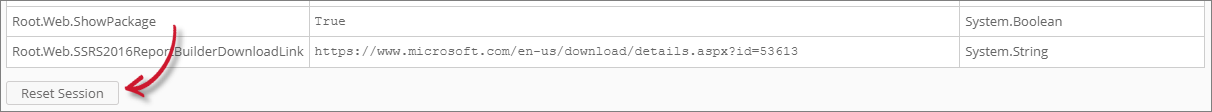

Click the Reset Session button at the bottom of the configuration table.

ServiceNow Integration: Reset Session

Configuring Data Retention (Keep Stale Record)

The ServiceNow Adapter keeps data active for 90 days by default. Data not seen within this period are marked as inactive.

To set the number of days to keep unseen data, follow these instructions:

Log in to the Open iT Analysis Server web interface.
Go to Administration > Configuration.
Locate the configuration key Root.ServiceNow.KeepStaleRecord.
Click the value to make it editable.
Set the value to the desired maximum number of days to keep stale data.
Click Save to apply the changes.

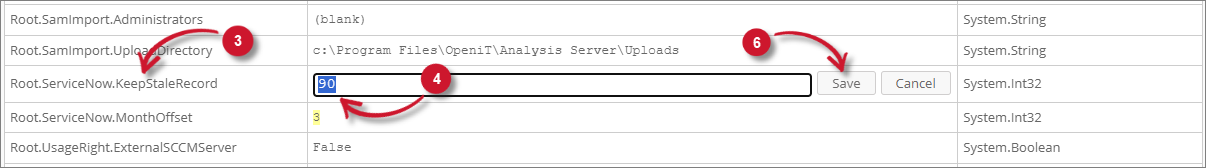

Setting Keep Stale Record
Click the Reset Session button at the bottom of the configuration table.

Reset Session

Displaying the ServiceNow Adapter Console Application Tasks​

Deploying Database Schema in SQL Server (DeploySchema)​

Processing Data from Open iT SQL Database (ProcessData)​

Configuring ServiceNow Settings (Configure)​

Setting the ServiceNow Instance URI​

Setting Authentication to Basic Authentication​

Setting Authentication to Bearer Authentication​

Setting Authentication to OAuth2 Authentication​

Testing the Connection​

Testing the Connection to the ServiceNow Instance​

Sending Processed Data to the ServiceNow Instance (PushData)​

Running All Adapter Processing Jobs (RunAdapter)​

ServiceNow Adapter Console Configuration​

Configuring the Data Extraction Range (Month Offset)​

Configuring Data Retention (Keep Stale Record)​

Displaying the ServiceNow Adapter Console Application Tasks

Deploying Database Schema in SQL Server (DeploySchema)

Processing Data from Open iT SQL Database (ProcessData)

Configuring ServiceNow Settings (Configure)

Setting the ServiceNow Instance URI

Setting Authentication to Basic Authentication

Setting Authentication to Bearer Authentication

Setting Authentication to OAuth2 Authentication

Testing the Connection

Testing the Connection to the ServiceNow Instance

Sending Processed Data to the ServiceNow Instance (PushData)

Running All Adapter Processing Jobs (RunAdapter)

ServiceNow Adapter Console Configuration

Configuring the Data Extraction Range (Month Offset)

Configuring Data Retention (Keep Stale Record)
