Installation

Installing through the Windows Installer Interface​

warning

Make sure that all the requirements are met before proceeding with the installation.

  1. Right-click the openit_servicenow_adapter_[version]_x64.msi installer file, then click Run as Administrator.

    Allow the app to make changes to the device to begin. A setup wizard will be displayed.

    Click Next.

    Installation Wizard

    Installation Wizard


  2. Read the End-User License Agreement before accepting the terms, then click Next.

    End-User License Agreement

    End-User License Agreement


  3. Specify the path to a valid Open iT license with SERVICENOW license key.

    The installation directory is automatically set to the parent directory of the Open iT Analysis Server, as the adapter relies on the server’s configurations.

    License File

    License File


  4. Specify a valid ServiceNow Instance URI. This is provided when deploying a ServiceNow Store Application.

    Specify the Authentication Type that will be used to connect to the ServiceNow instance. There are three (3) available options:

    • Basic - requires a Username and Password to connect to the ServiceNow instance

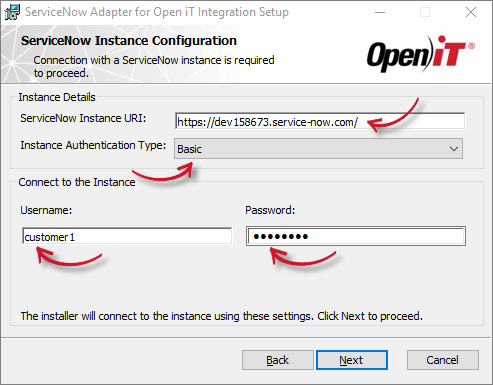

    ServiceNow Instance Configuration - Basic

    ServiceNow Instance Configuration - Basic


    • Bearer Token - requires a Bearer Token to authenticate the connection

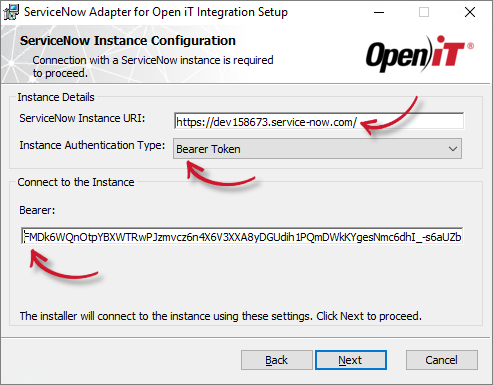

    ServiceNow Instance Configuration - Bearer Token

    ServiceNow Instance Configuration - Bearer Token


    note

    Refer to the How to Get the Access Token Credential from ServiceNow guide for the Bearer Token setup.

    • OAuth2.0 - requires the following details to connect to the ServiceNow instance:
      • Username and Password - valid credentials with specific role
      • Client ID - the generated ID once an Application Registry is created in the ServiceNow instance
      • Client Secret - an encrypted key which is generated once an Application Registry is created in the ServiceNow Instance

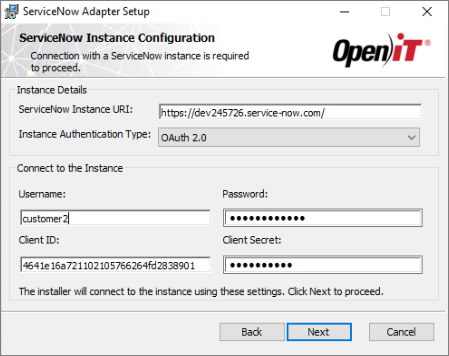

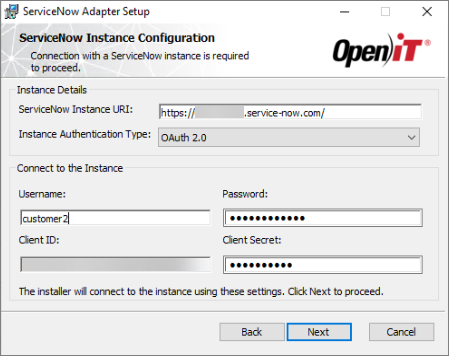

    ServiceNow Instance Configuration - OAuth 2.0

    ServiceNow Instance Configuration - OAuth 2.0


    note

    Refer to the Configuring Application Registry in the ServiceNow Instance section to obtain the Client ID and Client Secret.

    Click Next to test the connection to the ServiceNow instance using the provided authentication type and credentials.

  5. Click Install to start the installation process. If a review of the entries is needed, click Back.

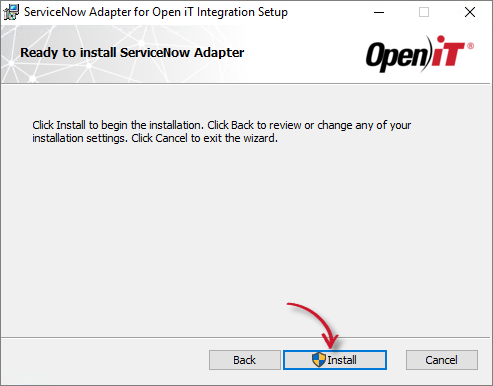

    Ready to Install

    Ready to Install


  6. The installer will set up all necessary files on the computer.

    Click Finish to complete the installation.

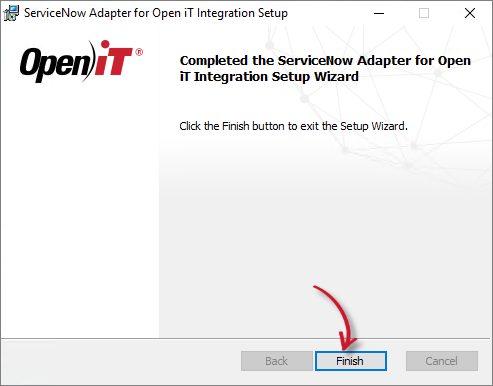

    Installation Complete

    Installation Complete


    note

    Installation logs are located in %LOCALAPPDATA%\Temp\\. The log files are named as MSI<random_characters>.log.

Installing through the Command Line​

  1. Open a command prompt with Administrator level privilege.

  2. Execute the following command:

    Command Syntax
    msiexec /i <msi_file> /l*v <log_file> <options> ADAPTERLICENSEFILE=<license_file>
    AUTHTYPE=<authtype> INSTANCEURI=<uri> INSTANCEUSERNAME=<username>
    INSTANCEPASSWORD=<password> INSTANCEBEARER=<token> CLIENTID=<clientid>
    CLIENTSECRET=<clientsecret>

    Required Parameters

    ParameterDescription
    /i <msi_file>Use this parameter to specify the path to the Windows installer file.
    l*v <log_file>Use this parameter to specify the path to the installation log file that will be created during installation.
    Required Parameters

    Optional Parameters

    ParameterDescription
    /quietUse this parameter to run the command in silent mode.
    /passiveUse this parameter to run the command in unattended mode — progress bar only.
    Optional Parameters

    Required Properties

    PropertiesDescription
    ADAPTERLICENSEFILE=<license_file>Use this property to specify the path to the Open iT license file with SERVICENOW license key.
    AUTHYPE=<authtype>Use this property to specify the authentication type that the installer will use to communicate with the specified ServiceNow instance. It accepts Basic, Bearer Token, or OAuth2.0. This is case-sensitive.
    INSTANCEURI=<uri>Use this property to specify a valid ServiceNow instance URI.
    INSTANCEUSERNAME
    INSTANCEPASSWORD    		Use these properties to specify valid credentials that will be used to authenticate on the specified ServiceNow instance. This is required with AUTHTYPE=Basic or AUTHTYPE=OAuth2.0.
    INSTANCEBEARER=<token>Use this property to specify a valid token that will be used to authenticate on the specified ServiceNow instance. This is required with AUTHTYPE=Bearer.
    CLIENTID=<clientid>
    CLIETSECRET=<clientsecret>    		Use these properties to specify valid identification keys of the ServiceNow instance that will be used for authentication. This is required with AUTHTYPE=OAuth2.0.
    Required Properties

    Example (Basic)
    msiexec /i "openit_servicenow_adapter_1-0-602_x64.msi" /l*vx install.log ADAPTERLICENSEFILE="C:\Path\to\your\license" AUTHTYPE=Basic INSTANCEURI=https://your-servicenow-instance/ INSTANCEUSERNAME=username INSTANCEPASSWORD=password
    Example (OAuth2.0)
    msiexec /i "openit_servicenow_adapter_1-0-602_x64.msi" /l*vx install.log ADAPTERLICENSEFILE="C:\Path\to\your\license" AUTHTYPE=OAuth2 INSTANCEURI=https://your-servicenow-instance/ INSTANCEUSERNAME=username INSTANCEPASSWORD=password CLIENTID=clientid CLIENTSECRET=clientsecret
    Example (Bearer Token)
    msiexec /i "openit_servicenow_adapter_1-0-602_x64.msi" /l*vx install.log ADAPTERLICENSEFILE="C:\Path\to\your\license" AUTHTYPE=Bearer INSTANCEURI=https://your-servicenow-instance/ INSTANCEBEARER=token

    When using the passive mode, wait until the process bar dialog disappears. When using the quiet mode, verify if the installation is complete by opening the Task Manager and checking in the Details tab if the msiexec process is still running.
