Confbackup

The confbackup (openit_confbackup) is an application that periodically tracks configuration revisions in the Configuration directory, which is by default in C:\Program Files\OpeniT\Core\Configuration in Windows and /var/opt/openit/etc in Unix. It then creates a backup of the modified or new files and a text file containing the changes.

Requirements​

  • Open iT Core Server version 10
  • Python version 3.1 or later
  • Portable Git version 2.0 or later

Activating Configuration Revision Tracking and Backup​

warning

This application is activated by default, given that portable git is available on your machine before installing Open iT. If you installed git after installing Open iT, you are required to activate this application manually.

These are the required steps to activate openit_confbackup:

  1. Open core_config_backup.oconf in the scheduler directory, which is by default in C:\Program Files\OpeniT\Core\Configuration\scheduler.

  2. Locate and set root.scheduler.jobs.core_config_backup.general.active and set its value to true.

    core_config_backup.oconf
    general
    {
        active
        {
            type=bool
            value=true
        }
    }

  3. Save the changes.

Changing the Interval of Revision Tracking​

This application tracks revisions every 3 hours by default. If you want to change the interval, follow these steps:

  1. Open core_config_backup.oconf in the scheduler directory, which is by default in C:\Program Files\OpeniT\Core\Configuration\scheduler.

  2. Locate the period attribute and change its value to your desired interval based on the ISO-8601 duration format PnDTnHnMn.nS.

    core_config_backup.oconf
    period
    {
        type=timespan
        value=PT3H
    }

  3. Save the changes.

Locating the Backup Files​

This application creates a backup of the modified or new files and a text file containing the changes made in the configurations. New directories are created in the configchanges directory, which is by default in C:\ProgramData\OpeniT\Data\confbackupfiles\configchanges.

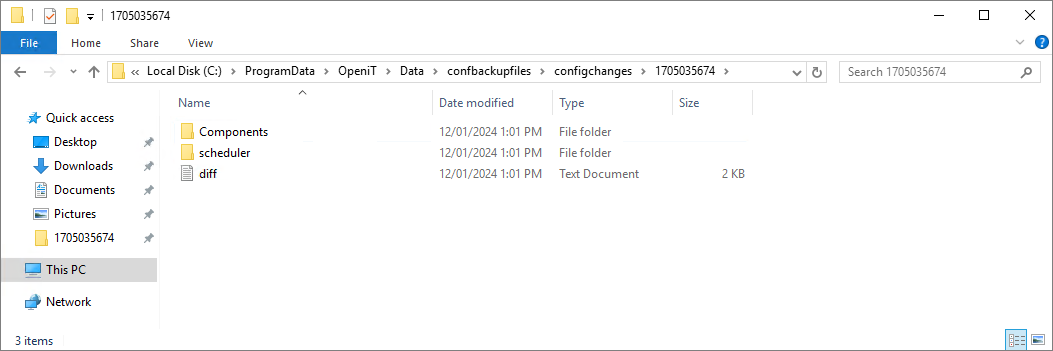

Sample Backup

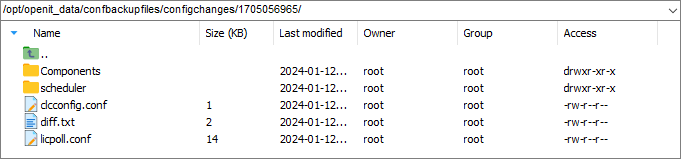

Sample Backup


Troubleshooting​

This section lists the errors you may encounter when running openit_confbackup; and the suggested solutions. You can find the error logs in ConfBackup.log in the debug directory, which is by default in C:\Program Files\OpeniT\Core\Log on Windows and /var/opt/openit/debug/ on Unix.

Cannot Find Git​

Problem
openit_confbackup requires git to function correctly. You may encounter this on a Windows machine if portable git is not installed, showing the error, [Winerror 2] Cannot find file specified in the debug logs.

Resolution
Install portable git in the External directory, which is by default in C:/Program Files/OpeniT/Core.

Git-backup Content Not Updating after Reinstallation​

Problem
You may encounter this when you uninstall then reinstall an Open iT server and use the same location for data storage; either on a Windows or Unix machine.

Resolution
Delete git-backup.zip in the configbackup directory, which is by default in C:/ProgramData/OpeniT/Data/confbackupfiles/ on Windows and in the confbackupfiles directory in your defined data_dir ($ROOT_DATA_DIR) upon Open iT server installation on Unix; then wait for the next scheduled run of openit_confbackup.
