Version: 10.2

IPGLock License Server

Introduction

Open iT supports IPGLock usage reporting by polling the license servers at regular intervals to get the current status of its license use and availability.

For this collection, the data source is through an API. The data collector/preprocessor initiates the license status utility every hour using a 5-minute sample interval, triggering the data collection process. The license status utility requests the current license usage data from the license manager portal. After the license manager portal provides the requested data, the license status utility passes this information to the data collector/preprocessor. The data collector/preprocessor processes the data, preparing it for transmission. Finally, the preprocessed data is sent to the Core Server every night, according to the client's timezone, for further storage, completing the license usage data collection and processing.

License Manager Utility Polling Workflow through API

This will produce the following aggregated data types used for historical reporting:

The following sections will guide you in setting up the necessary configuration to collect and send the required data to the server.

warning

Apply the configurations in the Open iT Core Client.

Requirements

Configured IPGLock license server
Valid IP address with the port number of the IPGLock API
An Open iT Core Client connected to an Open iT Core Server or a coexistent Open iT Core setup
Activated LicenseAnalyzer collection and license poller
License server administrative rights

Configuring Data Collection

These are the required steps to activate and configure collection of IPGLock usage data.

Go to the Components directory, which is by default in C:\Program Files\OpeniT\Core\Configuration\Components, and back up the licpoll.xml configuration file.
Open a command prompt with Administrator level privileges.
Go to the bin directory, which is by default in C:\Program Files\OpeniT\Core\bin, run the command:
Command Syntax
```
cd $BIN_DIR
```
Example
```
cd C:\Program Files\OpeniT\Core\bin
```
Once in the directory, copy the object node genericlicense-sample and rename it to your desired name. In this example, we will use ipglock. Run the command:
Command Syntax
```
openit_confinit -c "licpoll.license-types.genericlicense-sample=>licpoll.license-types.ipglock"
```
warning
Element names cannot contain parentheses ( or ) because they are not valid for XML element names.
Activate the collection of IPGLock data, run the command:
Command Syntax
```
openit_confinit -c "licpoll.license-types.ipglock.active=true"
```
Set the arguments to the status command, run the command:
Command Syntax
```
openit_confinit -c "licpoll.license-types.ipglock.status-command.arguments=ipglock <server> <port> </includeSerial>"
```
where:
- <server> is the host name or the valid IP address of the IPGLock license server.
- <port> is the port used by the IPGLock license server.

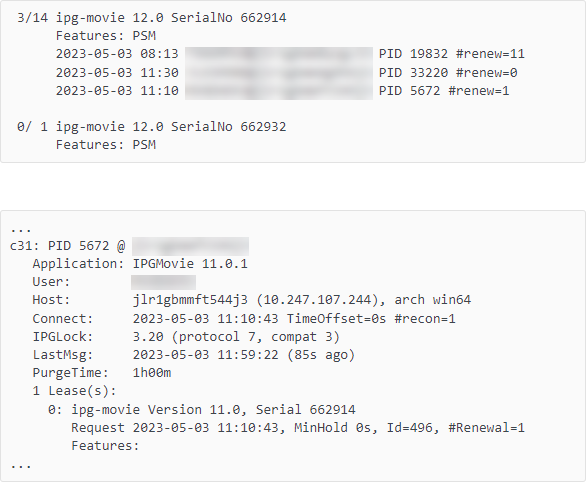

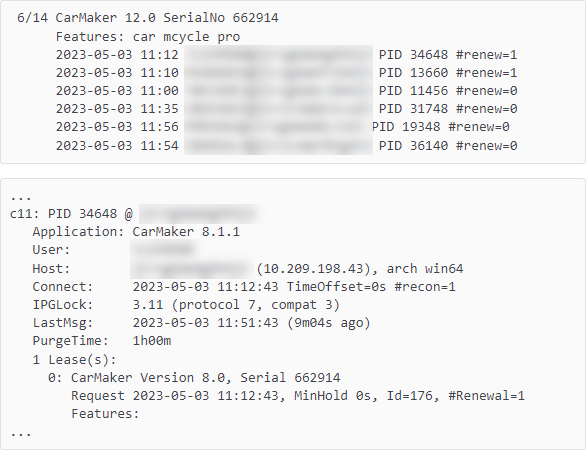

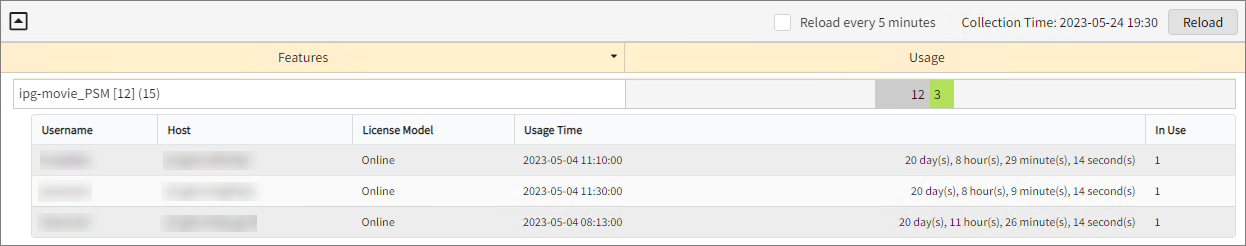

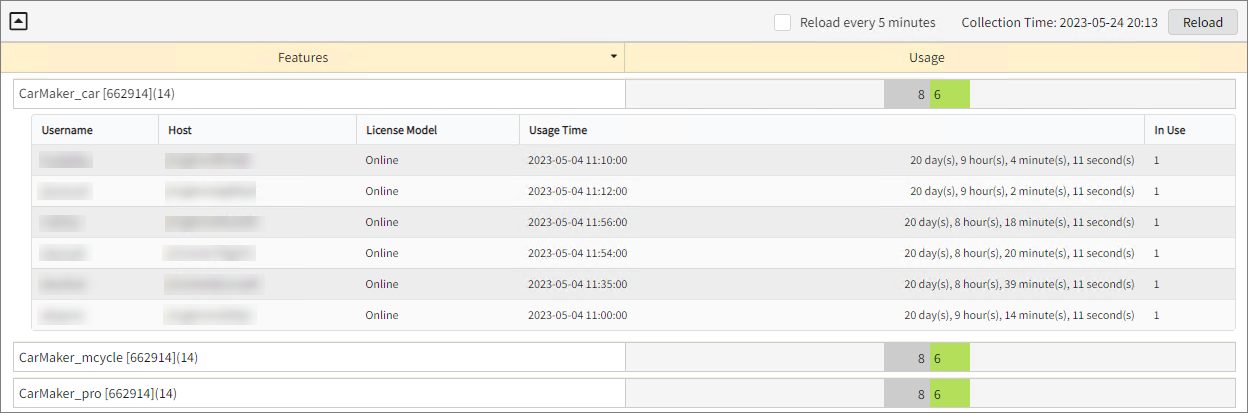

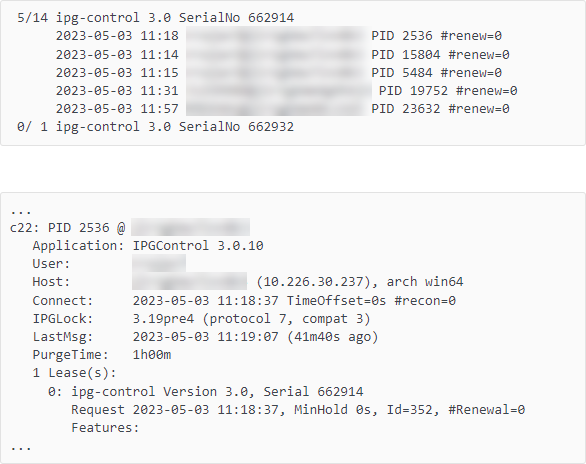

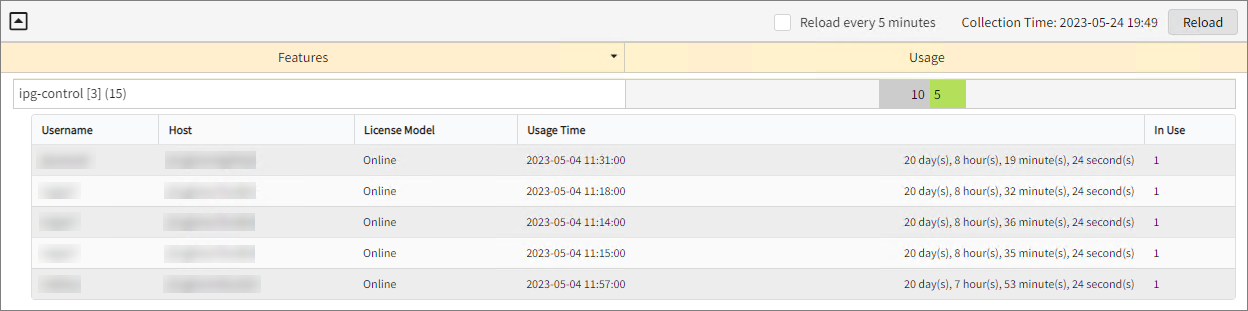

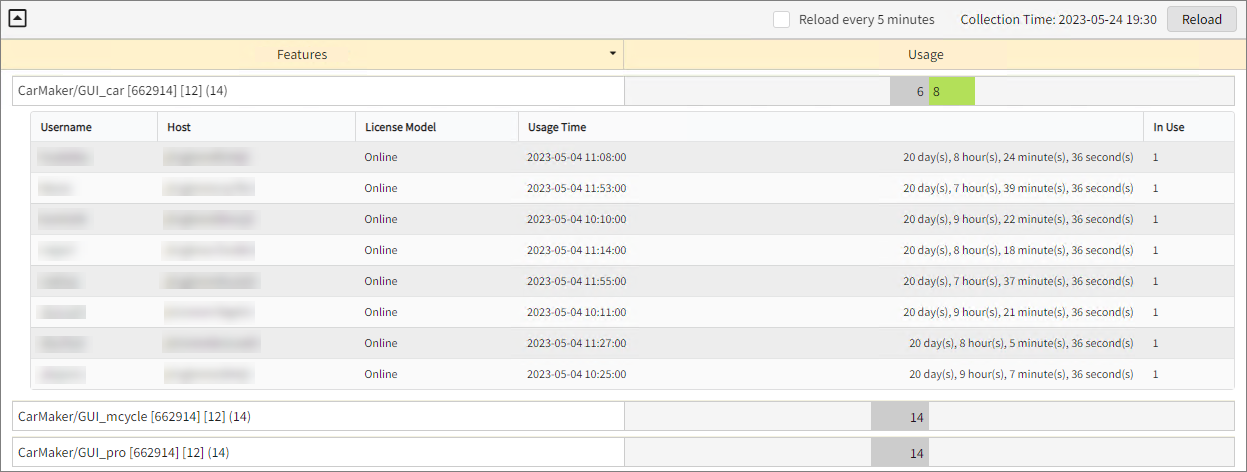

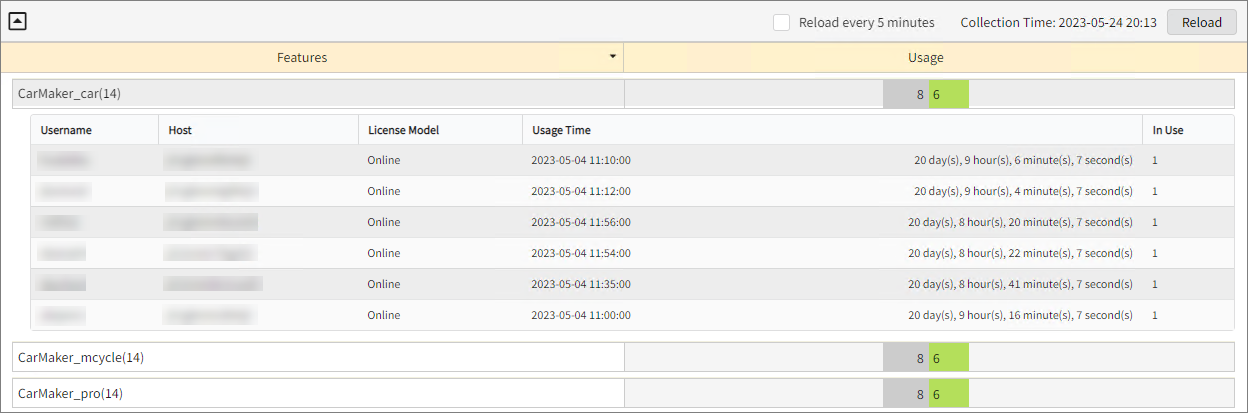

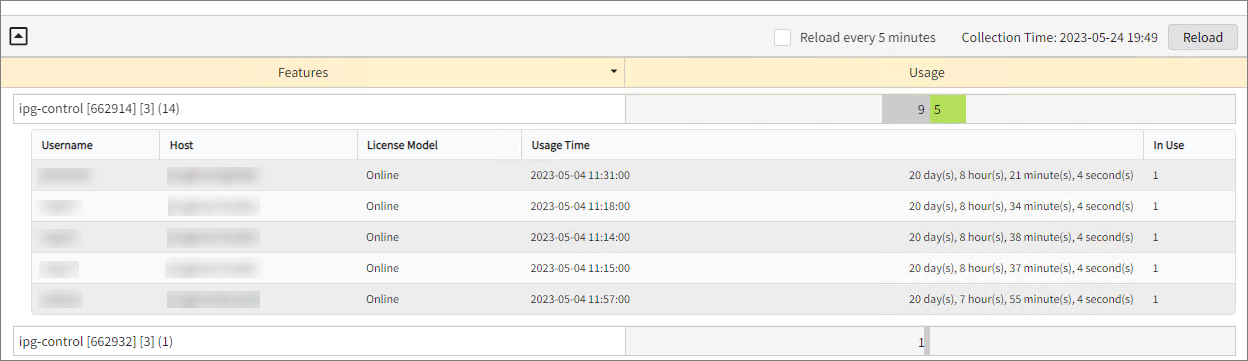

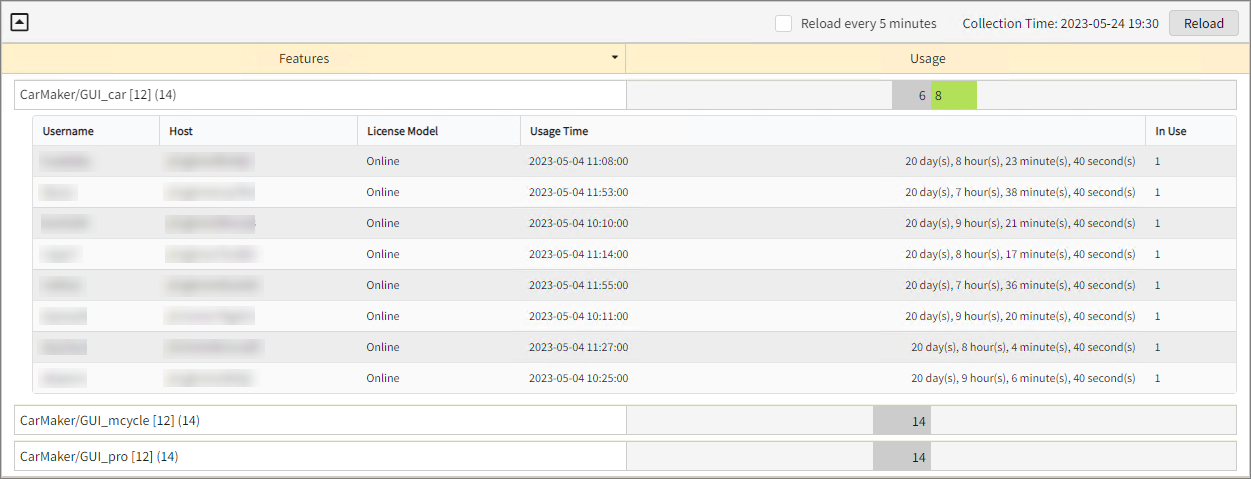

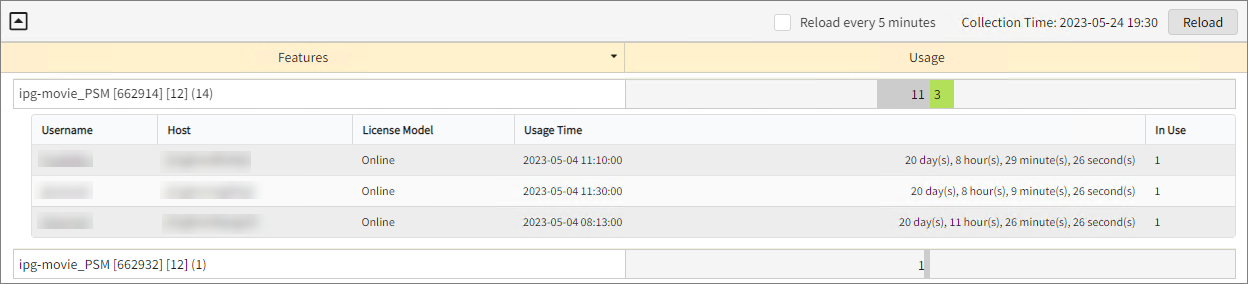

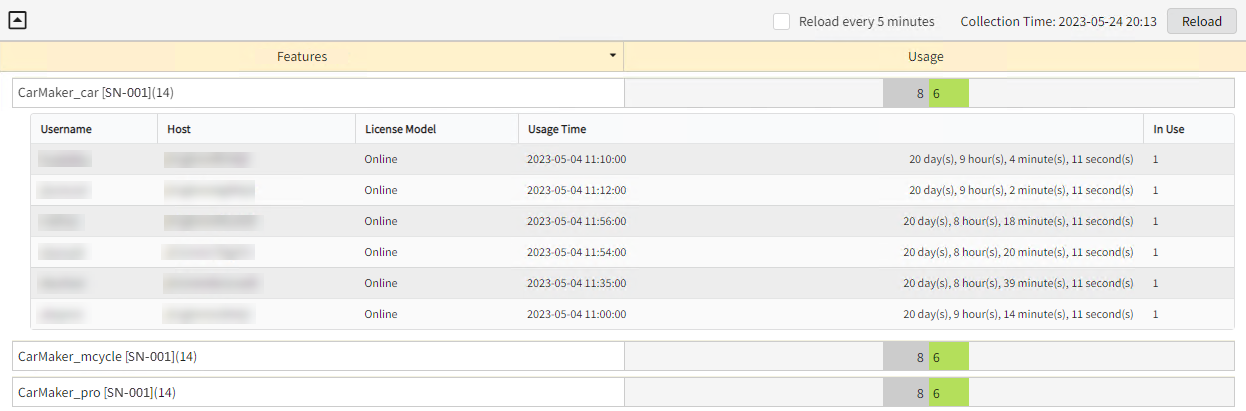

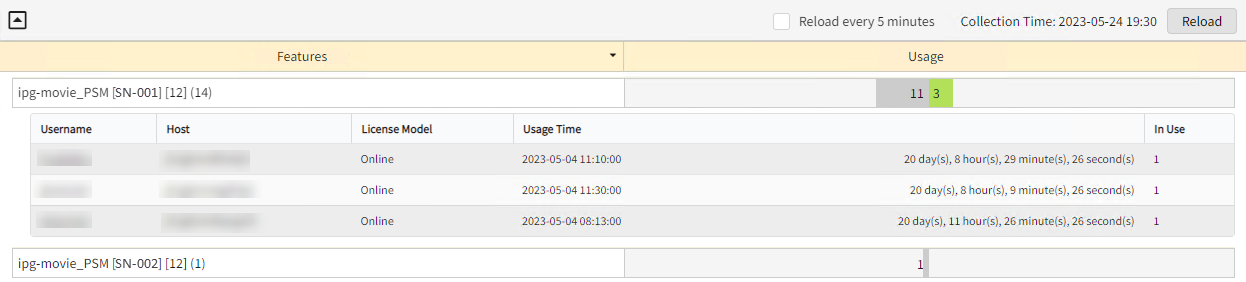

- </includeSerial> (optional) is added in the arguments if you want to include the serial number in the feature names.
Example
```
openit_confinit -c "licpoll.license-types.ipglock.status-command.arguments=ipglock desktop123win 1908 /includeSerial"
```
Update the configuration file, run the command:
Command Syntax
```
openit_confbuilder --client
```
Make sure no errors are encountered.

Advanced Configuration

Refer to the IPGLock Data Collection Configuration table to learn more about IPGLock configuration in licpoll.xml.

Object Name	Accepted Value	Description
active	Boolean (`true` or `false`)	Setting this to `true` activates IPGLock usage data collection.
type	String (i.e., `IPGLock`)	The license manager type.
interval	Timespan (e.g., `P30S`, `P5M`, `P1H`)	The span of time between each polling round (it is recommended to set a value no less than P1M).
offset	Timespan (e.g., `P30S`, `P5M`, `P1H`)	The span of time the aligned poll time decided by interval is shifted.
product-name	String (e.g., `server;daemon`)	This object is defined if a vendor license name other than the default `GenericLicense=%hosttype%` will be used.
license-server	String (e.g., `desktop123win`)	The license server name.
status-command	FileName (i.e., `${OpeniT.directories.bin}/genlicutil`)	The binary used to obtain status from the license manager.
status-command.arguments	String (e.g., `IPGLock desktop123win 1908 /includeSerial`)	The arguments used for the status command. Use the format `<server> <port> </includeSerial>`.

IPGLock Data Collection Configuration

Verifying Data Collection

After configuration, you can verify that the data is collected by following these steps:

Open a command prompt with Administrator level privileges.
Go to the bin directory, which is by default in C:\Program Files\OpeniT\Core\bin, run the command:
Command Syntax
```
cd $BIN_DIR
```
Example
```
cd C:\Program Files\OpeniT\Core\bin
```
Run the command:
Command Syntax
```
openit_licpoll -# 1
```
Verify that the temp directory, which is by default in C:\ProgramData\OpeniT\Data\temp, contains a LicPoll directory containing .data and status-*.log files.
