Web Interface Access

Accessing the Web Interface without Ingress

Follow these instructions to access the web interface:

1. On a browser, go to http(s)://<AS_hostname>:<port_number>.

   Use http(s)://localhost:<port_number> when accessing in the host machine.

   Where:

   Variable	Description
   <AS_hostname>	The name of the machine where Open iT Analysis Server is hosted.
   <port_number>	The port number provided during the installation and will be used in the web service. The default value is 80.

   Accessing Web Interface - Variable

   Example:

   If installed using the default port, 80.

   http://desktop-oit:80/

   Or using HTTPS with the default port, 443.

   https://desktop-oit:443/

   If installed to other port (e.g., 8088).

   http://desktop-oit:8088/

   Or using HTTPS with the port, 8443.

   https://desktop-oit:8443/

2. When accessing for the first time or incognito, a prompt for credentials will appear.

3. Provide the Active Directory or local user credentials, then click Sign in.

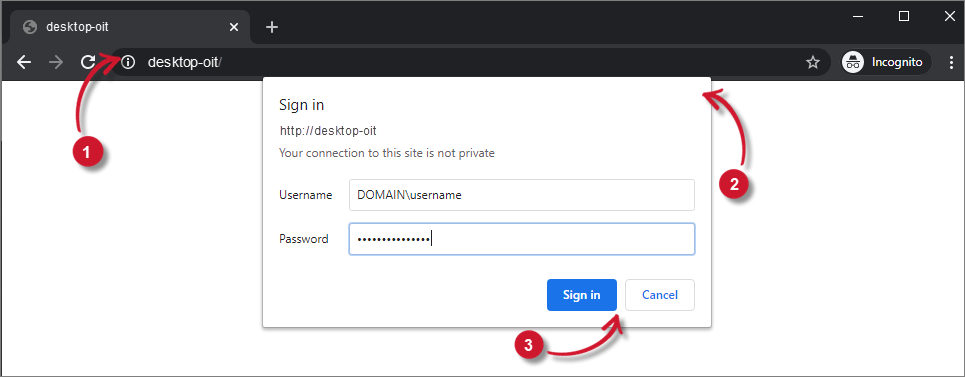

   Analysis Server Web Access

   The Home page should be displayed.

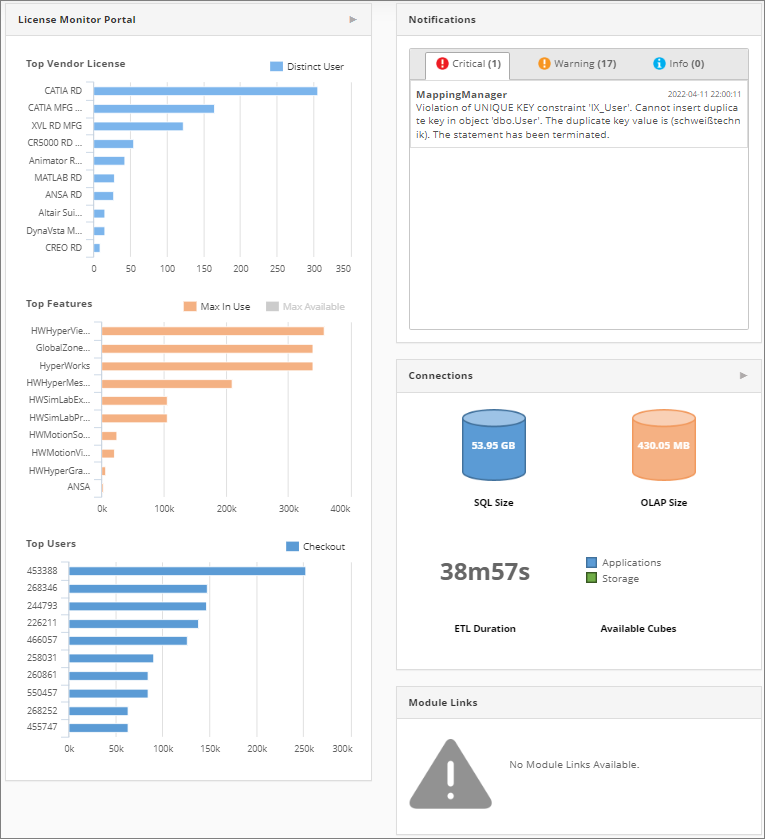

   Analysis Server Home Page




Accessing the Web Interface through Ingress

Follow these instructions to access the web interface:

NOTE

You may experience a delay when trying to access the web interface for the first time due to the registration process of the Analysis Server with Ingress.

1. On a browser, go to http(s)://<AS_hostname>:<port_number>/analyzer.

   Use http(s)://localhost:<port_number>/analyzer when accessing in the host machine.

   Where:

   Variable	Description
   <AS_hostname>	The name of the machine where Open iT Analysis Server is hosted.
   <port_number>	The port number provided during the installation and will be used in the web service. The default value is 80.

   Accessing Web Interface - Variable

   Example:

   Using the default port, 8080:

   http://desktop-oit:8080/analyzer

   Or using HTTPS.

   https://desktop-oit:443/analyzer

   If installed to other port (e.g., 8088).

   http://desktop-oit:8088/analyzer

   Or using HTTPS with the port, 8443.

   https://desktop-oit:8443/

2. When accessing for the first time or incognito, a prompt for credentials will appear.

3. Provide the Active Directory or local user credentials, then click Sign in.



   Analysis Server Web Access

   The Home page should be displayed.



   Analysis Server Home Page




Accessing the Web Interface with Single Sign-On

Single Sign-On uses the Microsoft Login Page to evaluate the access privileges of the current user.

warning

The login page is not displayed when the account is logged in to other applications. It will be redirected to the Open iT Analysis Server Home page.

Follow these instructions to access the web interface:

1. On a browser, go to https://<AS_hostname>:<port_number>/analyzer.

   Where:

   Variable	Description
   <AS_hostname>	The name of the machine where Open iT Analysis Server is hosted.
   <port_number>	The port number provided during the installation and will be used in the web service. The default value is 80.

   Accessing Web Interface - Variable

   Example:

   Using the default port, 443:

   https://desktop-oit/

   or using other port (e.g., 8443):

   https://desktop-oit:8443/

2. Provide a valid Email Address in the Microsoft login page. Click Next.

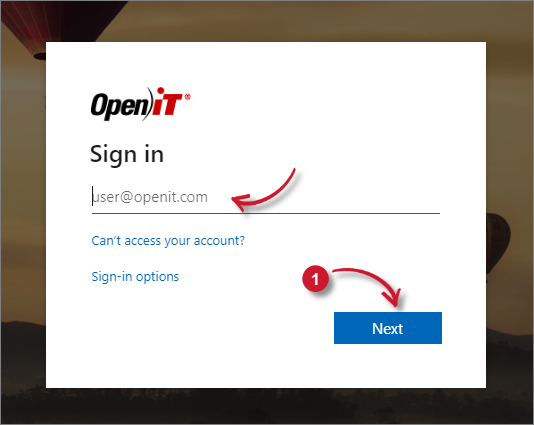

   Analysis Server Web Access: Microsoft Login Page




3. Provide the Password, then click Sign in.

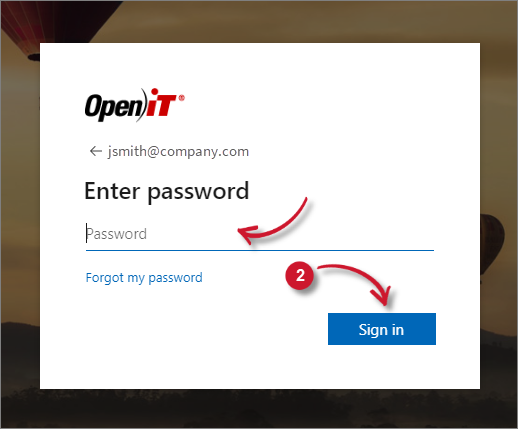

   Analysis Server Web Access: Microsoft Login Password



   NOTE

   You may also be prompted for 2F Authentication if configured in your account. Accomplish the task to proceed.

4. Choose the appropriate answer if asked to Stay signed in.

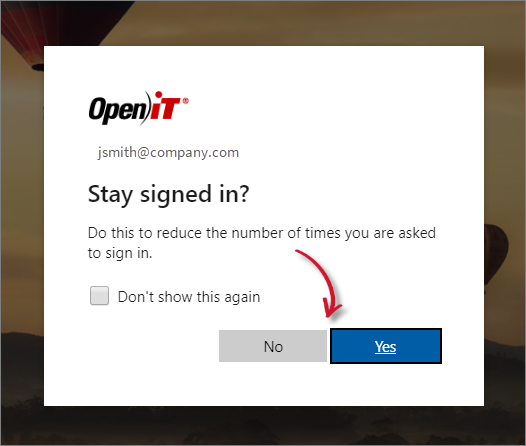

   Analysis Server Web Access: Microsoft Login Stay Signed In



   NOTE

   When a Permission Request dialog prompts, read the terms and conditions carefully, then click Accept.

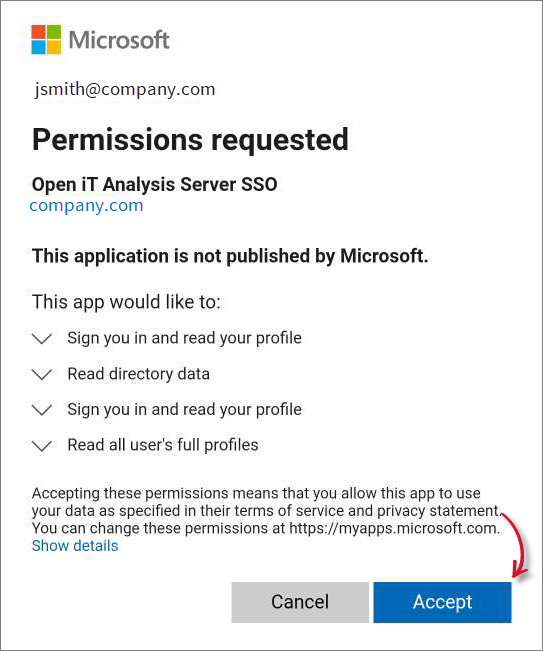

   Analysis Server Web Access: Microsoft Login Permission

5. The page will be redirected to the Open iT Analysis Server Home page. Notice that the user account displayed in the upper-right corner of the page is from Microsoft Azure Active Directory.

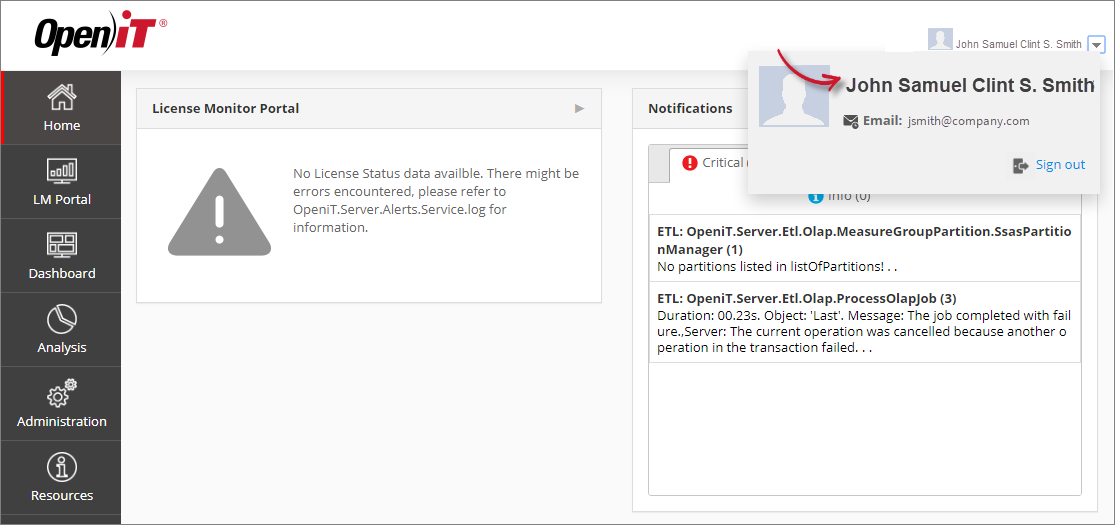

   Analysis Server Web Access: Home Page with SSO

Recommended Reading

The following configuration helps to maintain restrictions and permissions to specific pages, review and determine if necessary.

Configuring Web Page Access
