Mappings

The Mappings page contains various functionalities to apply changes into the processed User mappings. The page is only visible to users with Administrative rights to Open iT Analysis Server.

A properly configured and processed mapping source is required to use this functionality.

Add Mapping

Follow these steps to add mapping entries to one of the User properties:

1. Click the desired User property. Make sure that this is properly mapped using the Mapping Sources page.

   The edit pane should appear at the right side of the page containing the processed mapping.

2. In the Source column, type the keyword to search in the available data. As you type, relevant suggestions should appear automatically.

3. Click on the desired item from the suggestions.

4. In the Mapping column, type the desired entry to map with the source item.

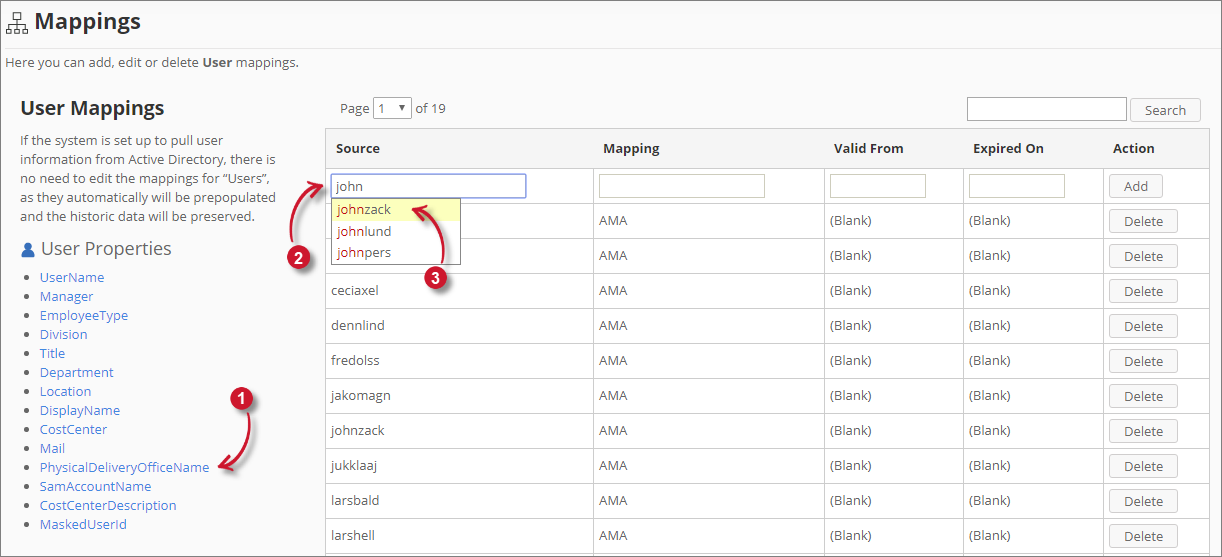

   Add Mappings

5. Select the date range for the Valid From and Expired On. Leave it blank to signify no limitations.

6. Click the Add button.

   The list should contain the added mappings.

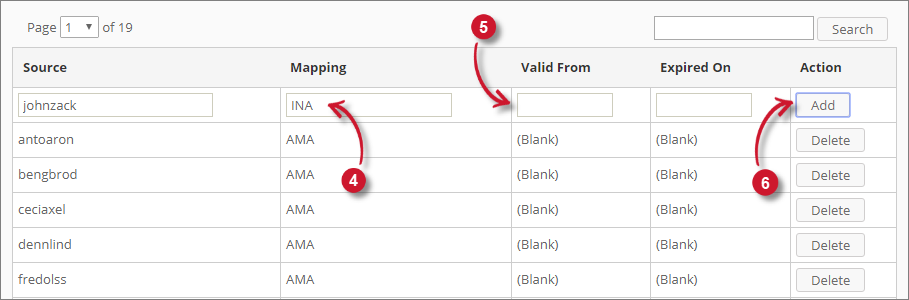

   New Mappings

7. Repeat steps 1 to 6 when adding multiple mapping entries.

Search Mapping

To search for a specific item in the list of available mapping, type in the keyword to search then click the Search button. The list should automatically be filtered based on the entered keyword.

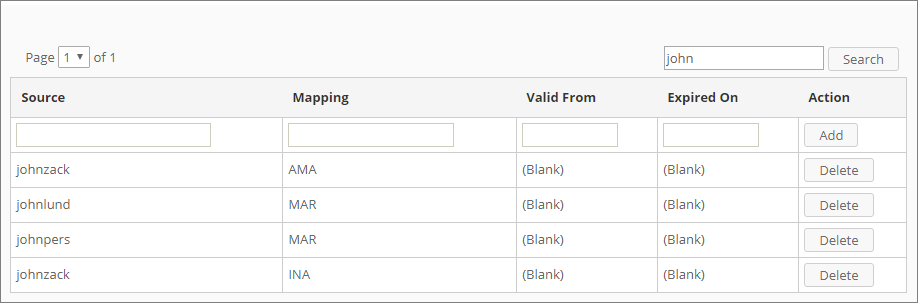

Search Mappings

Updating Mapping

Follow these steps to modify a specific mapping item:

1. Search the item to modify in order to filter the list.

2. Find the item in the list and modify the details. The Source column is not editable.

3. Click Save to apply changes.

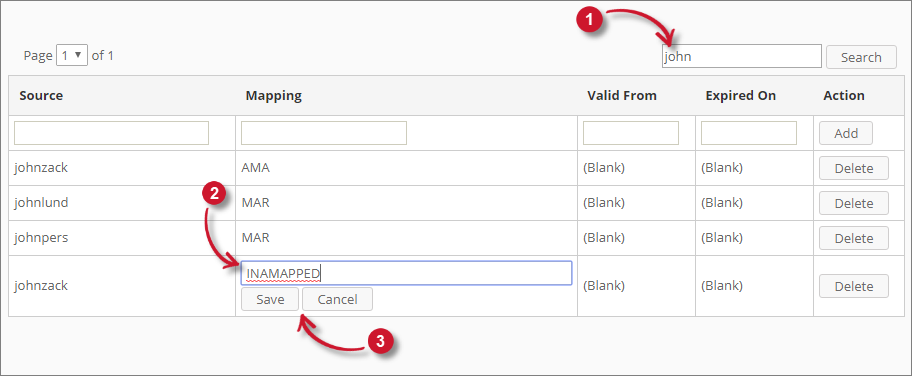

   Update Mappings

Delete Mapping

Follow these steps to delete a mapping entry:

1. Search the item to modify in order to filter the list.

2. Find the item to be removed in the list.

3. Click the Delete button.



   Delete Mappings

   A confirmation message should appear.

4. Click OK to continue.

   The list should automatically be updated.
